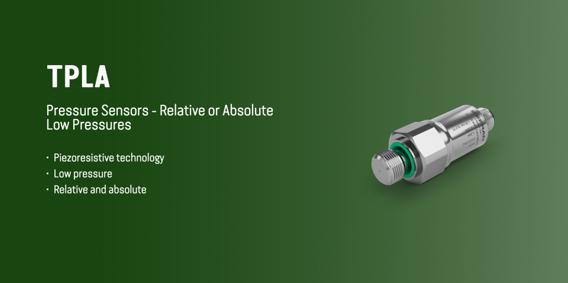

TPLA: pressure sensors for accurate measurement of low pressures

The new TPLA pressure transmitters are a reliable, high-performance solution for measuring relative or absolute low pressures. Based on piezoresistive technology, they use a silicon measuring cell designed to ensure high sensitivity, accuracy, and stability even in the most critical applications.

Thanks to their ability to detect very low pressures with extreme accuracy, TPLA sensors are particularly suitable for sectors such as food & pharma packaging, industrial printers, dosing and extrusion blow molding, as well as all industrial applications that require reliable and continuous pressure control.

The TPLA series offers measuring ranges from 0…0.05 bar up to 0…60 bar, with analog voltage or current outputs, ensuring maximum flexibility for integration into existing systems. The materials used, such as the 316L stainless steel process connection and the 304 housing, ensure robustness and compatibility with numerous industrial environments. The silicone oil filling fluid and FKM O-rings complete a design focused on reliability and durability.
